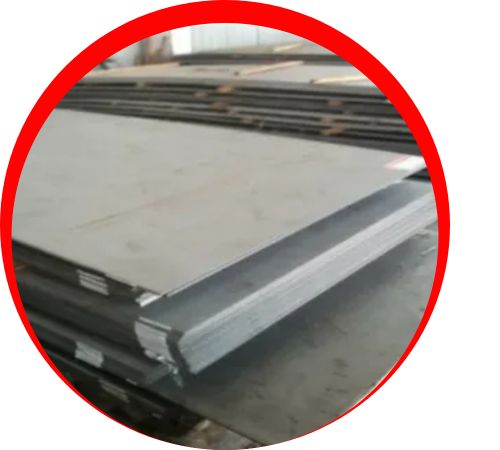

Tanvir Nickel Alloys is a leading manufacturer and supplier of Nickel Alloy 201 sheets and plates in Cairo, Egypt. Our Nickel Alloy 201 sheets and plates are engineered to deliver outstanding strength, durability, and exceptional corrosion resistance, making them perfect for a variety of industrial applications. Renowned for their performance in harsh conditions, these materials are ideal for use in chemical processing, aerospace, marine, and oil and gas industries. We are committed to quality and precision, ensuring that each sheet and plate meets rigorous industry standards for reliability and performance. Choose Tanvir Nickel Alloys for premium Nickel Alloy 201 sheets and plates that offer superior performance and meet your specific needs with excellence.
| Nickel Alloy Sheets & Plates Specifications | ASTM B162 / ASME SB162, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| Nickel Alloy Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |

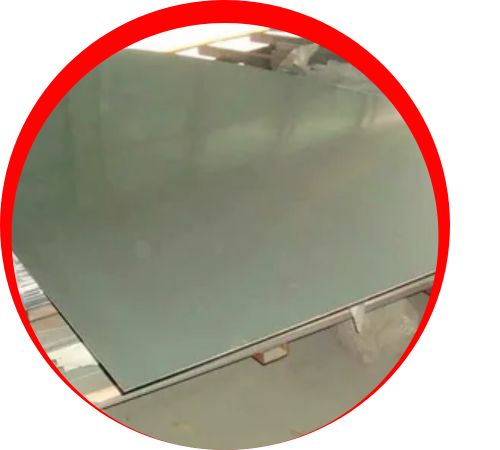

| Nickel Alloy Sheets & Plates Size Range | Cold rolled ASME SB162 Grade 201 Nickel Alloy Sheet 0.5-6.4 mm Hot rolled ASME SB162 Grade 200 Nickel Alloy Sheet 3.0–10.0 mm |
| Nickel Alloy Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Nickel Alloy Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Nickel Alloy Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Nickel Alloy Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Nickel Alloy Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SB162 200 Nickel Alloy Strips EN 10088 SA -240-400 Strips |
| Finish of Nickel Alloy Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

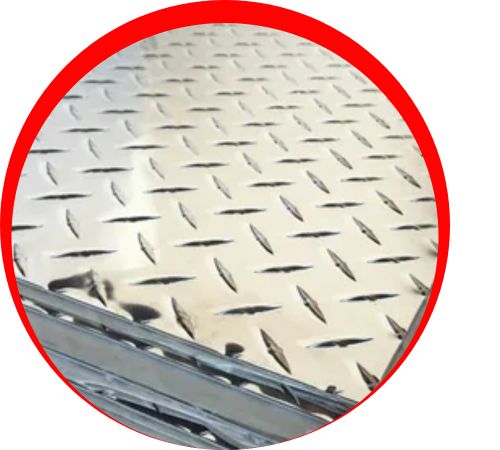

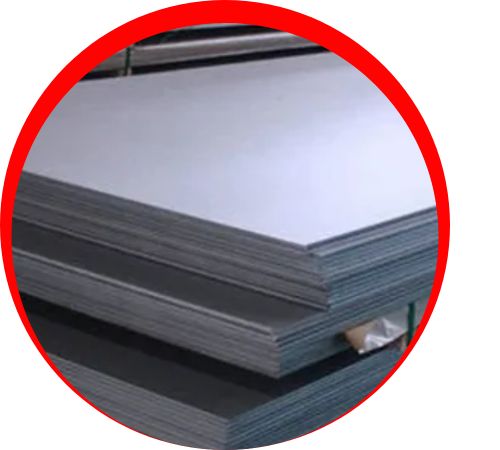

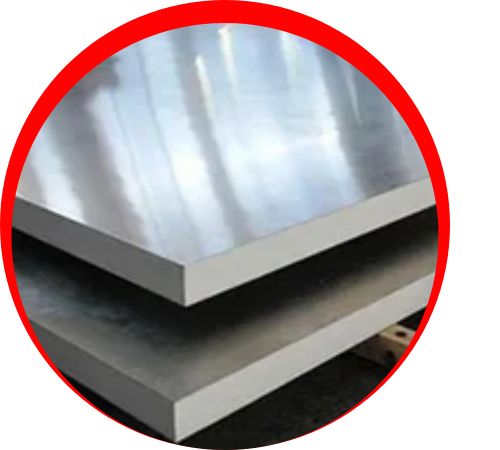

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Nickel Alloy Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Element | Ni+Co | Cu | Si | Mn | C | Mg | S | P | Fe |
|---|---|---|---|---|---|---|---|---|---|
| Nickel | 99.99 | 0.015 | 0.03 | 0.002 | 0.01 | 0.01 | 0.001 | 0.001 | 0.04 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
The composition of Nickel Alloy 201 Sheets and Plates is primarily over 99% nickel, with small amounts of copper, iron, and manganese. This unique blend offers remarkable resistance to reducing acids, caustic solutions, and a range of industrial chemicals. The material showcases excellent tensile strength, ductility, and fatigue resistance, along with good weldability and formability. Additionally, Nickel Alloy 201 remains stable at high temperatures and shows exceptional resistance to stress corrosion cracking, making it a great choice for critical and high-performance applications.
Contact us to get a quick quote for your requirement.
You’ll find Nickel Alloy 201 Sheets and Plates commonly used in chemical processing equipment, heat exchangers, piping systems, and storage tanks that deal with corrosive fluids. They’re particularly well-suited for petrochemical plants, marine settings, desalination facilities, and power generation plants, where corrosion resistance and mechanical reliability are crucial. Beyond that, these sheets and plates are also utilized in pharmaceutical, industrial machinery, and aerospace sectors, ensuring long-term performance, lower maintenance needs, and operational efficiency in tough and corrosive conditions.
