Tanvir Nickel Alloys is a leading manufacturer and supplier based in Cairo, Egypt, specializing in high-quality nickel alloys. Renowned for our precision and reliability, we offer a comprehensive range of Monel 400 sheets and plates designed to meet the rigorous demands of various industries. Monel 400 is known for its exceptional resistance to corrosion and high strength, making it ideal for challenging environments. We ensure top-notch products and services to meet diverse industrial needs.

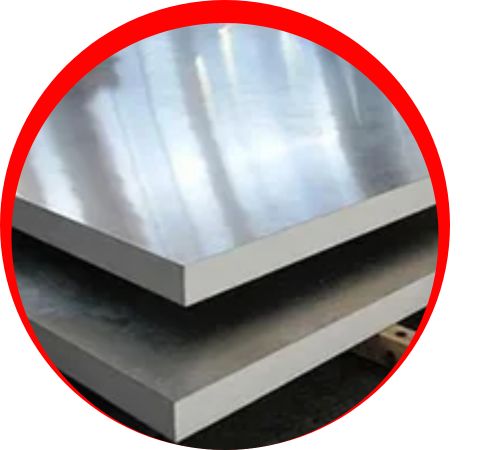

Tanvir Nickel Alloys, located in Cairo, Egypt, stands out as a top manufacturer and supplier of premium **Monel 400 Sheets and Plates**. These products are celebrated for their remarkable corrosion resistance, impressive strength, and durability. By employing cutting-edge manufacturing methods and rigorous quality control, the company guarantees that every sheet and plate adheres to international standards and meets client requirements. Monel 400 Sheets and Plates from Tanvir Nickel Alloys find their way into various industries, including chemical processing, petrochemical, marine, oil and gas, and power generation, delivering dependable performance even in the most corrosive and demanding conditions. The company is dedicated to providing precision-engineered nickel products that blend strength, toughness, and long-lasting reliability.
| Specifications | ASTM / ASME SB 127 |
|---|---|
| Size | 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm |
| Thickness | 0.1mm to 12 mm Thk |

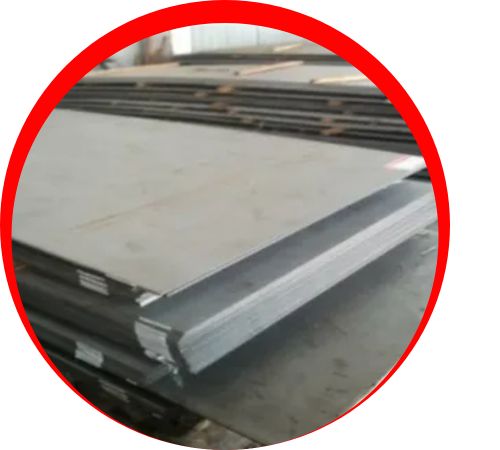

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) |

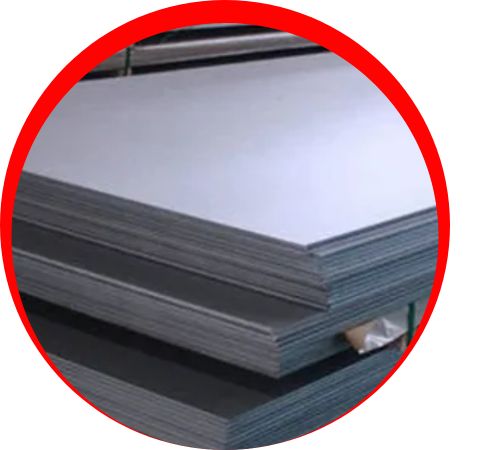

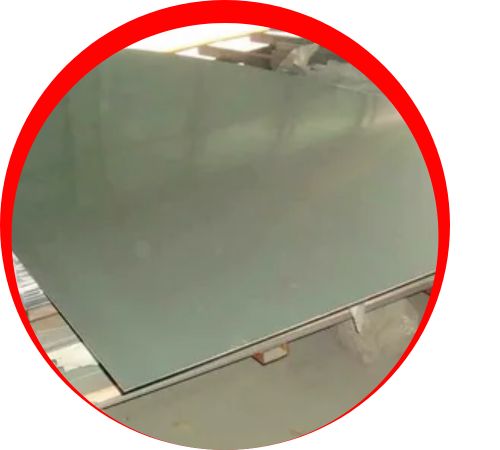

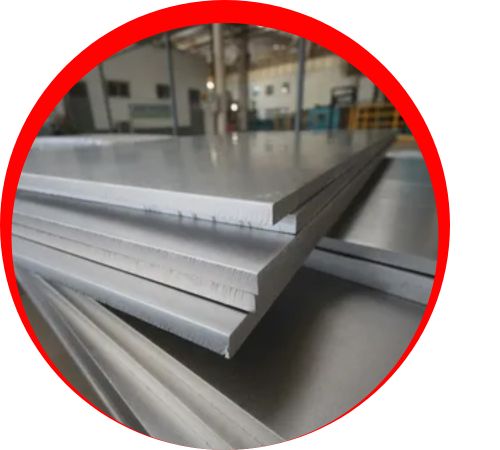

| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
|---|---|---|---|---|---|---|---|
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
The composition of Monel 400 Sheets and Plates consists of about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, and silicon. This unique blend offers exceptional resistance to corrosion in seawater, hydrofluoric acid, and alkaline solutions, all while maintaining excellent tensile strength, ductility, and fatigue resistance. The material also boasts great weldability, formability, and stability at high temperatures, making it perfect for high-performance and critical applications.
Contact us to get a quick quote for your requirement.
Monel 400 Sheets and Plates are widely utilized in chemical and petrochemical equipment, marine systems, oil and gas pipelines, and offshore platforms where corrosion resistance and mechanical reliability are crucial. They are particularly well-suited for crafting heat exchangers, pressure vessels, piping components, storage tanks, and parts for industrial machinery. Plus, these sheets and plates ensure long-lasting performance, require minimal maintenance, and enhance operational efficiency in tough and corrosive industrial settings.
