Tanvir Nickel Alloys stands out as a top-notch manufacturer and supplier located in Cairo, Egypt, with a focus on high-quality Inconel 617 Forged Fittings. Known for their precision engineering and outstanding performance, these fittings are built to endure extreme temperatures and harsh environments. Tanvir Nickel Alloys guarantees that every product adheres to international standards, ensuring remarkable strength, durability, and reliability. With a strong dedication to excellence and customer satisfaction, the company serves a diverse array of industries, providing Inconel 617 Forged Fittings that excel in demanding applications like chemical processing, power generation, and aerospace.
These Inconel 617 Forged Fittings are made from a nickel-chromium-cobalt-molybdenum alloy, which offers excellent resistance to oxidation and carburization at high temperatures. The chromium boosts oxidation resistance, while molybdenum and cobalt enhance strength and creep resistance. These fittings showcase impressive tensile and yield strength, along with exceptional metallurgical stability. Their remarkable mechanical properties allow them to maintain strength and structural integrity even when exposed to temperatures as high as 1100°C for extended periods, making them perfect for high-stress, high-temperature applications in industrial settings.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

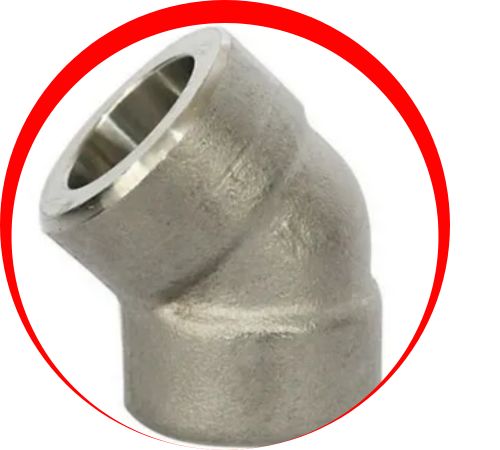

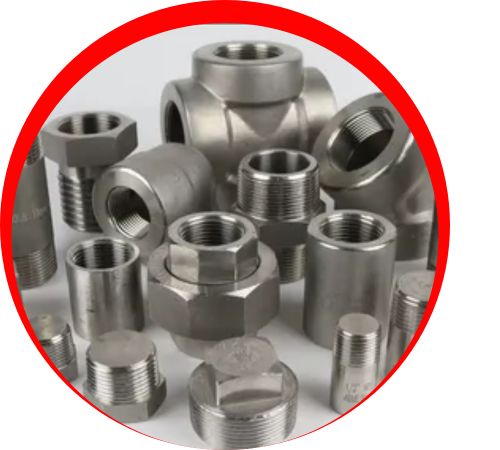

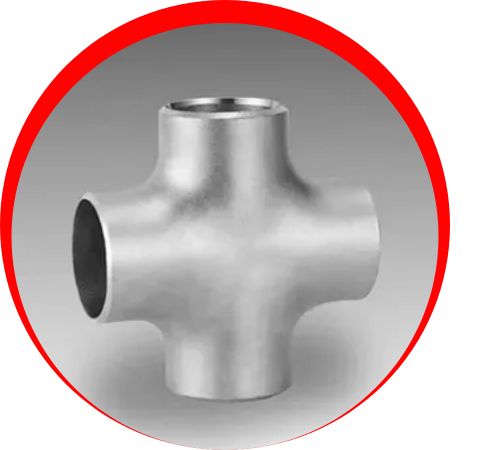

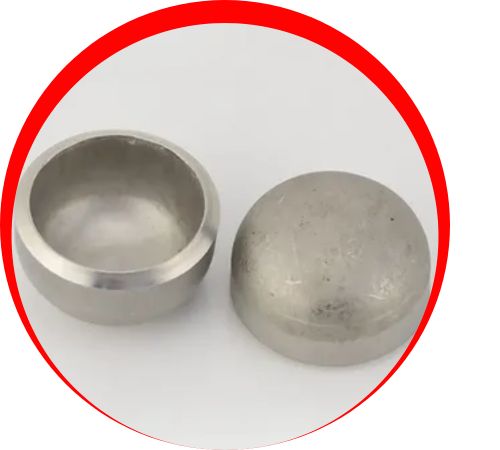

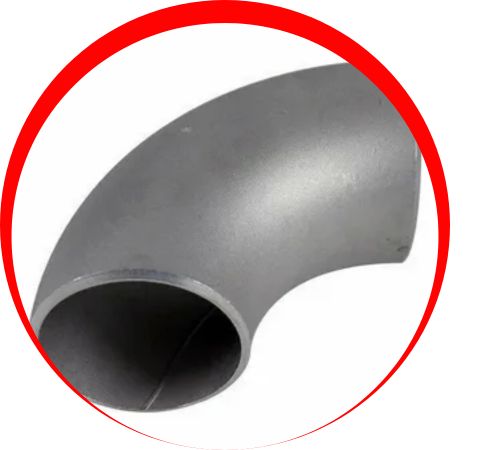

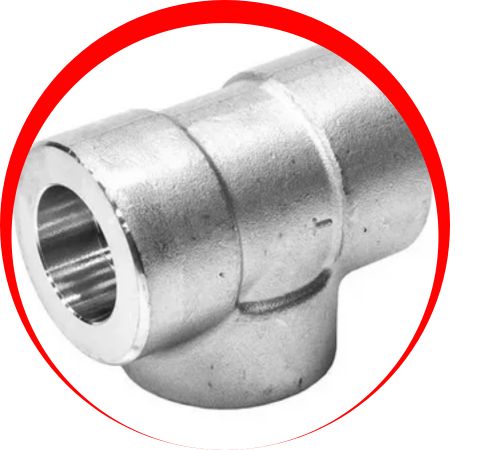

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 617 Forged Fittings find their place in industries that require top-tier heat and corrosion resistance. They are commonly used in gas turbines, heat exchangers, power generation systems, and chemical processing equipment. Their ability to resist oxidation and thermal fatigue makes them ideal for petrochemical plants and components in high-temperature furnaces. Additionally, these fittings are essential in aerospace engines and exhaust systems, where strength and durability in extreme conditions are crucial. Their reliability and versatility make them a fantastic option for both high-temperature and high-pressure service applications.
