Tanvir Nickel Alloys, located in Cairo, Egypt, stands out as a top manufacturer and supplier of Hastelloy flanges, crafted to deliver exceptional corrosion resistance and mechanical strength in demanding industrial settings. With a wealth of knowledge in nickel-based alloys, Tanvir ensures that their flanges adhere to strict international standards, guaranteeing precise dimensions, a superb surface finish, and dependable sealing performance. These flanges are perfect for applications in chemical processing, petrochemical, power generation, and marine industries, where durability and resistance to harsh chemicals and high temperatures are absolutely essential.
| Specifications | Hastelloy Flanges |
|---|---|
| ASME B16.5 Hastelloy C276 Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Hastelloy Flanges Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flanges. |
| Hastelloy C276 Flange Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Hastelloy C276 Flange Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Hastelloy C276 Flange Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Hastelloy C276 Flange Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Hastelloy C276 Flange Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Hastelloy C276 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most common types of Hastelloy C276 Flanges |
|
| Production technique |
|

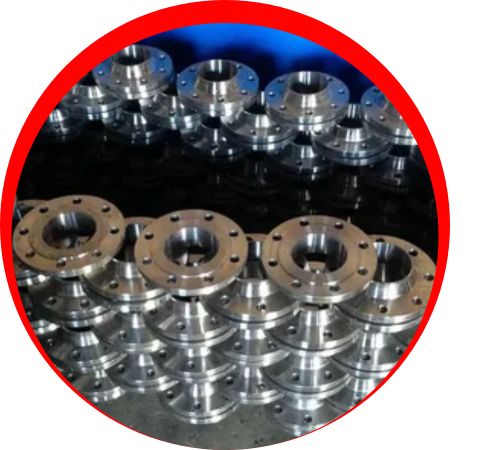

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove |

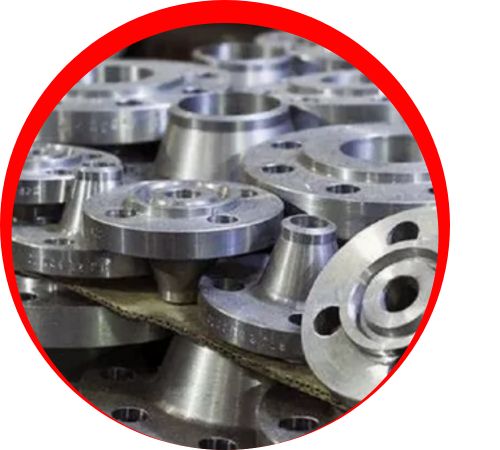

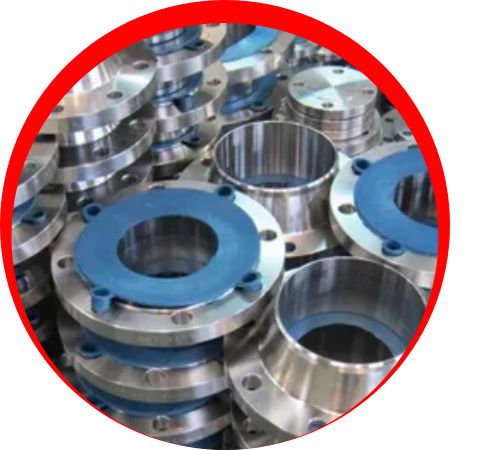

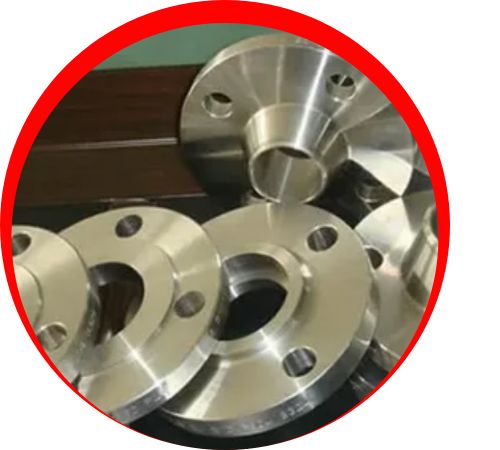

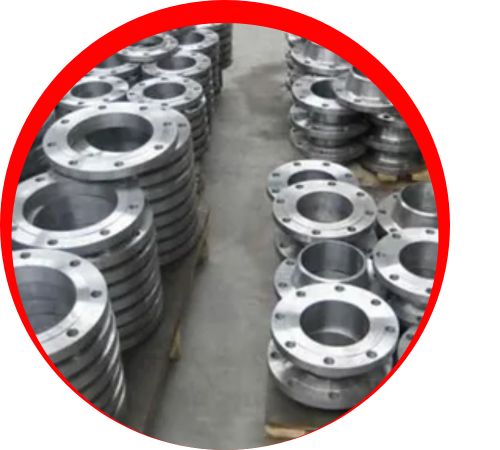

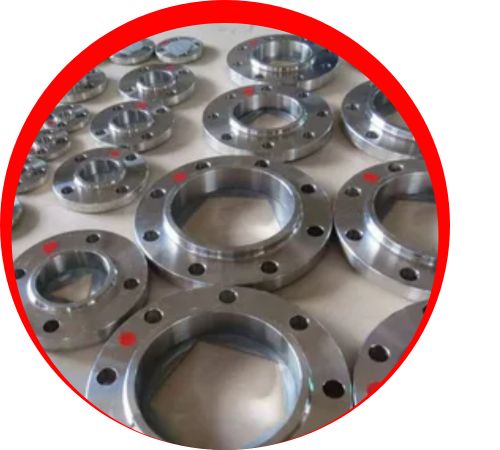

| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Hastelloy C276 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Grade | Hastelloy C22 |
|---|---|
| C | 0.010 max |
| Mn | 0.50 max |
| Si | 0.08 max |
| S | 0.02 max |
| Co | 2.50 max |
| Ni | 50.015 min |
| Cr | 20.00 – 22.50 |
| Fe | 2.00 – 6.00 |
| Mo | 12.50 – 14.50 |
| P | 0.02 max |
| Density | 8.89 g/cm3 |
| Melting Point | 1370 °C (2500 °F) |
| Tensile Strength | Psi – 1,15,000 , MPa – 790 |
| Yield Strength (0.2%Offset) | Psi – 52000 , MPa – 355 |
| Elongation | 40 % |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Hastelloy Flanges in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Often found in pipeline systems, reactors, heat exchangers, and pressure vessels, Hastelloy flanges create secure, leak-proof connections that are vital for safe industrial processes. Their excellent weldability and machinability facilitate custom fabrication and straightforward installation, making them a trusted option for critical applications that demand strength, reliability, and corrosion resistance.
