Home > Copper Nickel > Copper Nickel Sheet and Plate

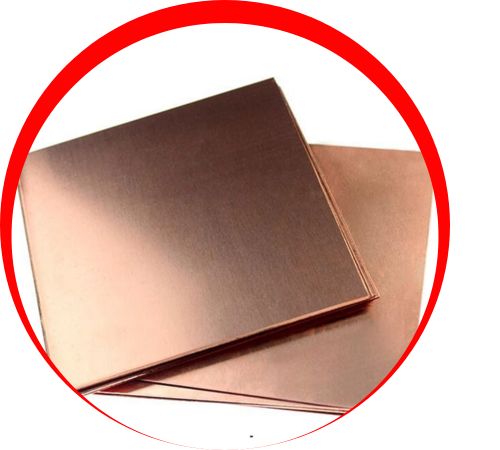

Tanvir Nickel Alloys, based in Cairo, Egypt, has built a solid reputation as a reliable manufacturer and supplier of top-notch Copper Nickel Sheets and Plates, celebrated for their remarkable durability and resistance to corrosion. Focusing on copper-nickel alloys, Tanvir crafts sheets and plates that adhere to rigorous industrial standards, guaranteeing dependable performance even in the toughest conditions. Their Copper Nickel Sheets and Plates are tailored for the marine, chemical, and power generation sectors, providing robust and long-lasting solutions for piping, structural, and heat exchange systems. Thanks to advanced manufacturing methods and strict quality control, Tanvir consistently delivers products that offer strength, precision, and reliable performance in critical applications.
These Copper Nickel Sheets and Plates are made up of about 90% copper and 10% nickel, with small amounts of iron and manganese added to boost their mechanical strength and corrosion resistance. On a mechanical level, these sheets and plates showcase high tensile strength, excellent ductility, and outstanding resistance to fatigue and wear. Their exceptional ability to withstand seawater, brackish water, and other corrosive environments ensures they perform reliably over the long haul, even under high pressure and temperature conditions, making them perfect for industrial and marine applications that demand durable and stable materials.
| Specifications | ASTM B171, B122 / ASME SB171, SB122 |
| Standards | ASTM, ASME and API |
| Size | 1 mm to 100 mm |

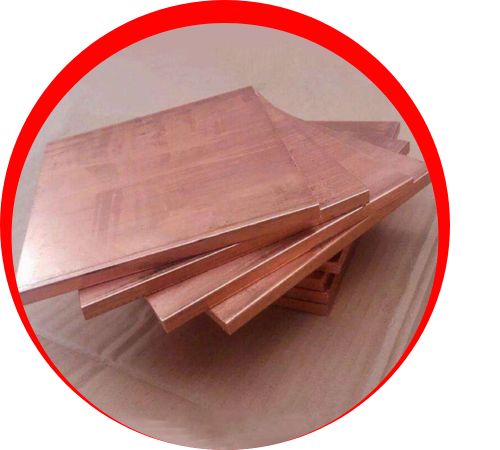

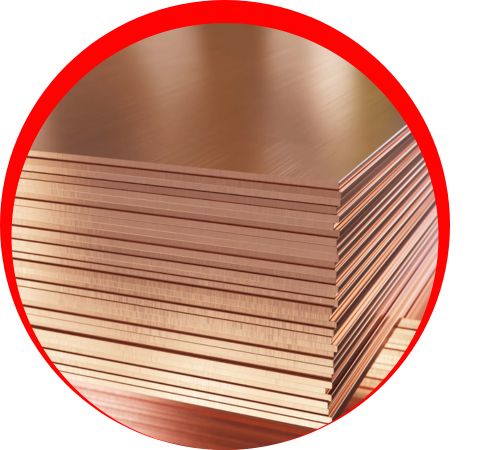

| Finishing | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

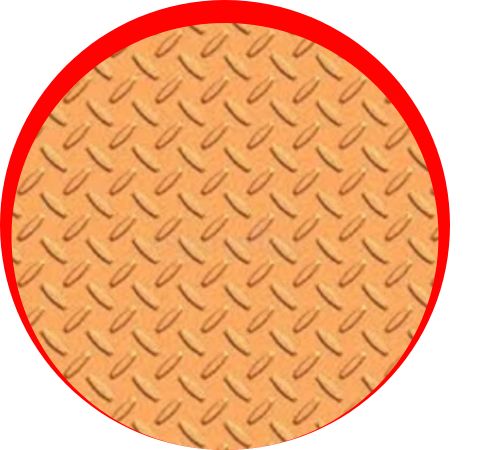

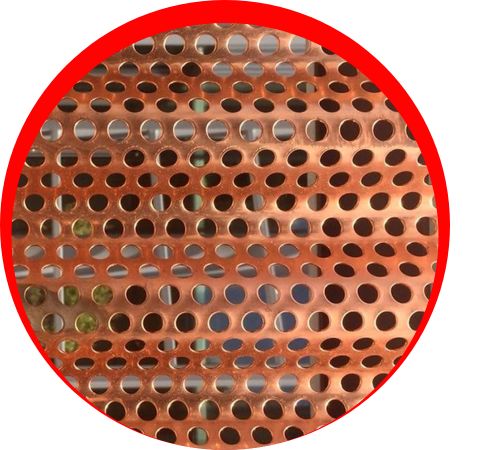

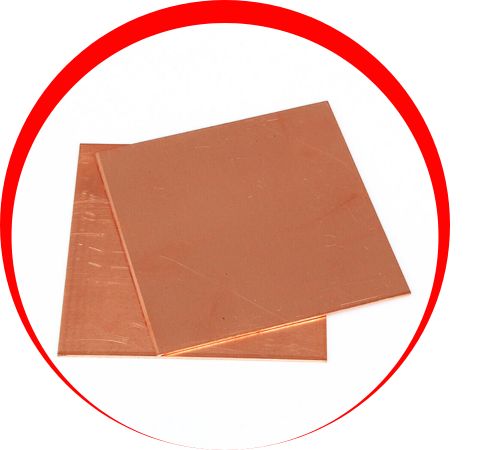

| Form | Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray, Roll Etc. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | UNS NO. C92200 & UNS NO. C83600, UNS NO. C70600 ( CU -NI- 90/10), C71500 ( CU -NI- 70/30), UNS NO C10100, C10200, C10300, C10800, C12000, C12200. |
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cupro Nickel | 88.6 min | 1.0 max | 0.05 max | 9-11 max | 1.8 max | 1 max |
| Element | Copper Nickel 90/10 |
|---|---|
| Density | 8.1 g/cm3 |
| Melting Point | 1443 °C (2430 °F) |
| Tensile Strength | Psi -80,000, MPa -551 |
| Yield Strength (0.2%Offset) | Psi – 35,000, MPa – 241 |
| Elongation | 30 % |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel Sheet and Plates in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
You’ll find Copper Nickel Sheets and Plates commonly used in shipbuilding, marine piping systems, desalination plants, chemical processing equipment, and heat exchangers, all thanks to their impressive corrosion resistance and mechanical properties. They’re particularly well-suited for seawater cooling systems, condenser tubes, offshore platforms, and structural components that face harsh environments. These sheets and plates help cut down on maintenance costs, boost operational safety, and promise long-term reliability. Their strength and durability make them a go-to choice in industries that need high-performance materials capable of handling tough environmental and mechanical challenges.
