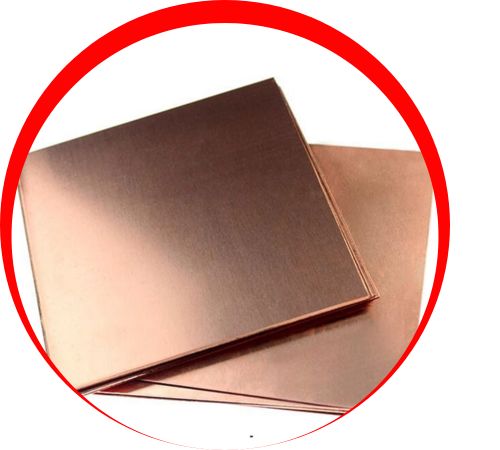

Tanvir Nickel Alloys, located in Cairo, Egypt, has built a solid reputation as a reliable manufacturer and supplier of top-notch Copper Nickel 90/10 Sheets and Plates. These products are well-known for their durability and outstanding performance, especially in tough environments. With a focus on copper-nickel alloys, Tanvir ensures that their sheets and plates adhere to strict industrial standards, providing excellent corrosion resistance and mechanical strength. The Copper Nickel 90/10 Sheets and Plates from Tanvir are specifically designed for industries like marine, chemical, and power generation, offering dependable solutions for piping, heat exchangers, and structural applications. Thanks to advanced manufacturing techniques and rigorous quality control, you can count on these products to perform consistently, even in challenging conditions.
The Copper Nickel 90/10 Sheets and Plates are made up of about 90% copper and 10% nickel, with small amounts of iron and manganese added to boost strength and corrosion resistance. In terms of mechanics, these sheets and plates showcase impressive tensile strength, great ductility, and solid resistance to fatigue and erosion. Their exceptional corrosion resistance, particularly against seawater and brackish water, makes them perfect for long-term use in marine and industrial settings, ensuring they maintain their structural integrity even when faced with harsh conditions.
Dimensions : ASTM, ASME and API
Standard :ASTM / ASME SB 171, SB 151
Size : 1 mm to 100 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Length : Single Random, Double Random & Cut Length
| Grade | Cu | Mn | Pb | Fe | Zn | Ni |
| Cupro Nickel 90/10 | 88.6 min | 1.0 max | .05 max | 1.8 max | 1 max | 9-11 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Cu-Ni 90/10 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
At Tanvir Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Sheet and Plates in Cairo, Egypt, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the Egypt, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
These Copper Nickel 90/10 Sheets and Plates are commonly found in shipbuilding, marine piping systems, heat exchangers, and desalination plants, thanks to their remarkable corrosion resistance and mechanical properties. They excel in seawater cooling systems, condenser tubes, offshore platforms, and chemical processing equipment, where long-lasting durability is essential. By minimizing maintenance costs and reducing operational downtime, these sheets and plates deliver reliable performance in tough environments. Their versatility and strength make them a go-to choice for industries that need materials capable of withstanding both mechanical stress and corrosive conditions effectively.
